Course project on the discipline: "Details of Machines" (Applied Mechanics). Option number 9

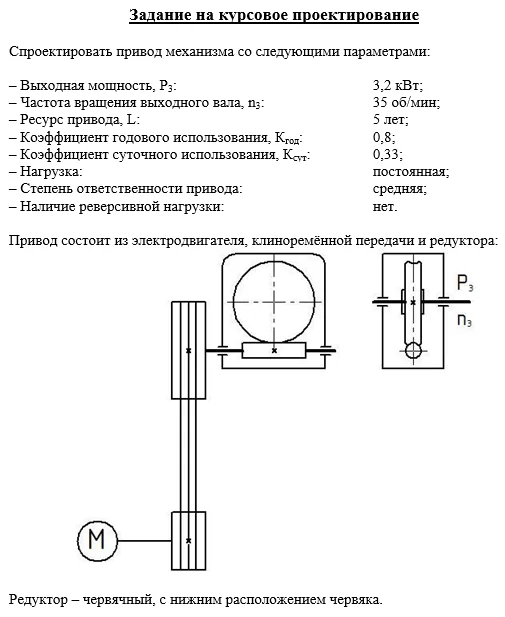

Task: Design a mechanism drive with the following parameters:
Output power P3, kW: 3.2
Output shaft speed n3, min-1: 35
Drive resource L, years: 5
Annual use coefficient, Kg: 0.8
Daily use coefficient, Ks: 0.33
Load: constant
Degree of drive responsibility: medium
Presence of reverse load: no
The drive consists of an electric motor, a V-belt transmission and a gearbox
Reducer: worm, with the lower location of the worm
Task: Design a mechanism drive with the following parameters:
Output power P3, kW: 3.2
Output shaft speed n3, min-1: 35
Drive resource L, years: 5
Annual use coefficient, Kg: 0.8
Daily use coefficient, Ks: 0.33
Load: constant
Degree of drive responsibility: medium
Presence of reverse load: no
The drive consists of an electric motor, a V-belt transmission and a gearbox
Reducer: worm, with the lower location of the worm
Archive content:
- Design task (MS Word)
- Explanatory note (MS Word)

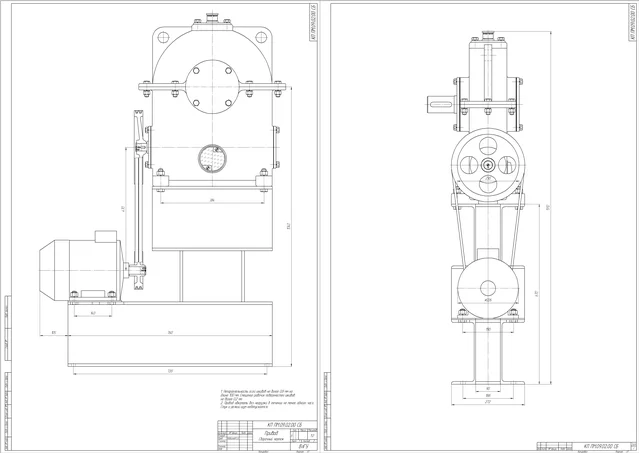

- Drive unit. Assembly drawing (KOMPAS-3D)

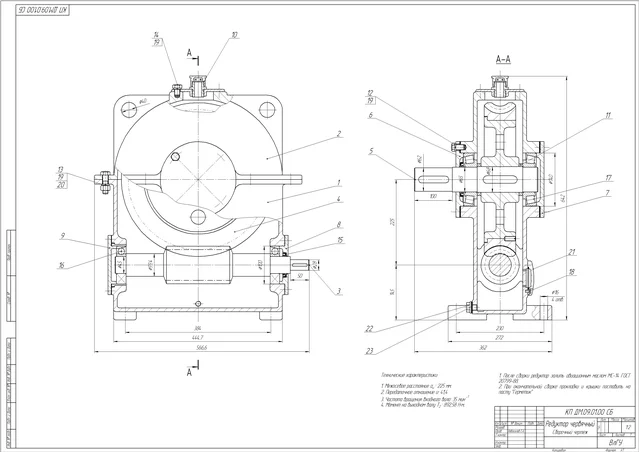

- Reducer. Assembly drawing (KOMPAS-3D)

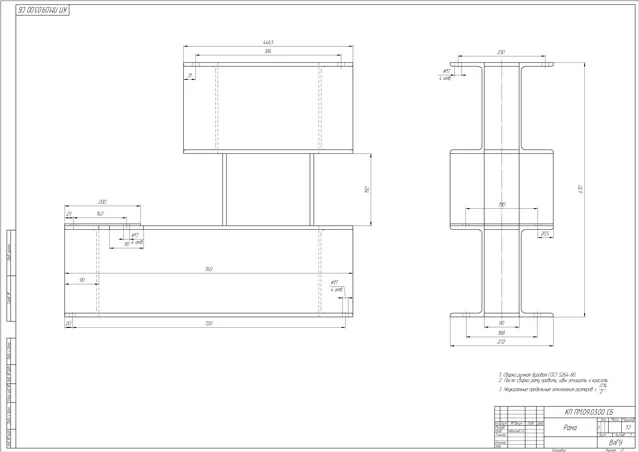

- Rama. Assembly drawing (KOMPAS-3D)
- Design task (MS Word)
- Explanatory note (MS Word)
- Drive unit. Assembly drawing (KOMPAS-3D)
- Reducer. Assembly drawing (KOMPAS-3D)
- Rama. Assembly drawing (KOMPAS-3D)
